Case Study
Twin House
Mapleton, ND
Multifamily investment property that will be commercialized as dwelling units.

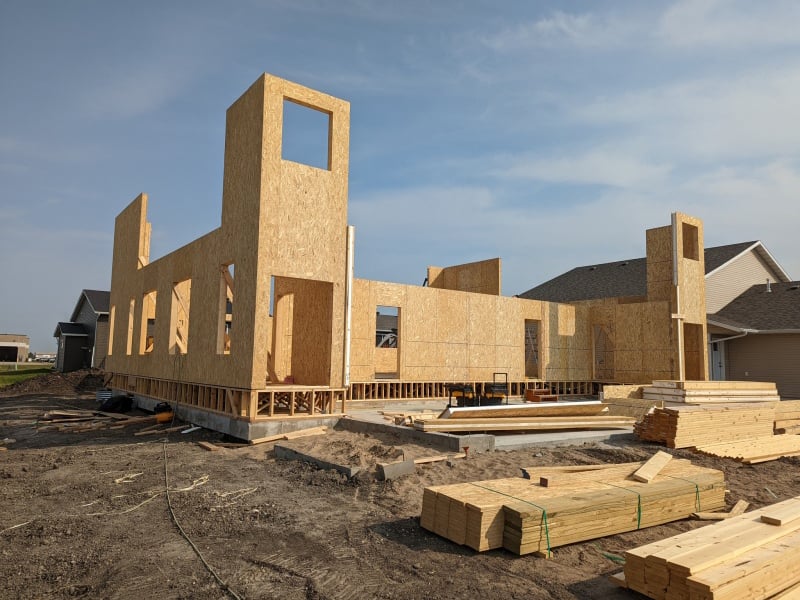

SIP wall thickness and core material: 5 ½" EPS Foam Core
The SIP installer felt that using SIPs saved time in framing because he did not need to hire an insulation crew. Joel added that there was a short one-time learning curve as a new installer, but the pace improved rapidly as they proceeded. Constructor informed us that the project went together well and he could tell it was a very solid type of construction.
HVAC:
95% AFUE York Natural Gas Forced air furnace with dual-zones.
York #YCE42B22SA compressor (14 Seer air conditioner)
Energy Star rated Greentek air exchange system
Energy-saving materials:
Andersen 100-series windows with 0.32 U Value
Jeld Wen insulated walk doors
Clopay R-19 Overhead Garage Doors
Energy-efficient product:
100% LED lightning
- The garage is wired for the EV vehicles and a garage heater.
- 19' walls in the great room with large windows provide ample natural light for great room and open loft area.
Its performance has been exceptional:
BEA:
2024 Multifamily Classic Winner
